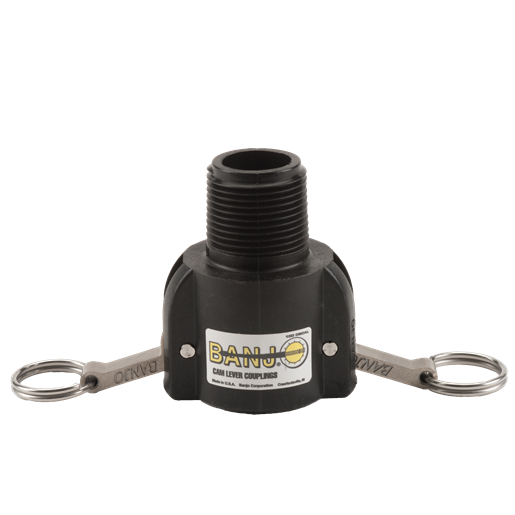

Picture of Camlock/Cam Lever Coupling x MPT, Polypropylene: 1"

Banjo Valves & Fittings
Camlock/Cam Lever Coupling x MPT, Polypropylene: 1"

SKU: TKP100B

"Best Choice for Acid Base Fertilizers"

Polypropylene Cam Lever Couplings Feature:

EPDM Gaskets.
304 Stainless Levers, Pins, and Rings. EPDM Gaskets Standard.
Operating Pressure:
3/8" thru 2": 100 PSI @ 0° F; 125 PSI @ 70° F.
2-1/2", 3" & 4" Cap-50 PSI Couplings 75 PSI Max.
FDA approved for potable water.

NOTE: P303 & All 4" couplings have 3 arms for positive seal! All Standard Configurations 1", 1-1/2", 2" & 3" Poly Lever Couplings are available in BSP (British Pipe Threads) - Just Add Suffix "B".

?75A Adapters with tab fit P050B & P075B Male Couplers with groove.
** With Guide Lock.

On 1/2" size the coupler & adapter ends are 3/4". Threads & Hose Barbs are 1/2".
On 1-1/4" size the coupler & adapter ends are 1". Threads & hose barbs are 1-1/4".

P303C & All 4" couplings have 3 arms for positive seal!
