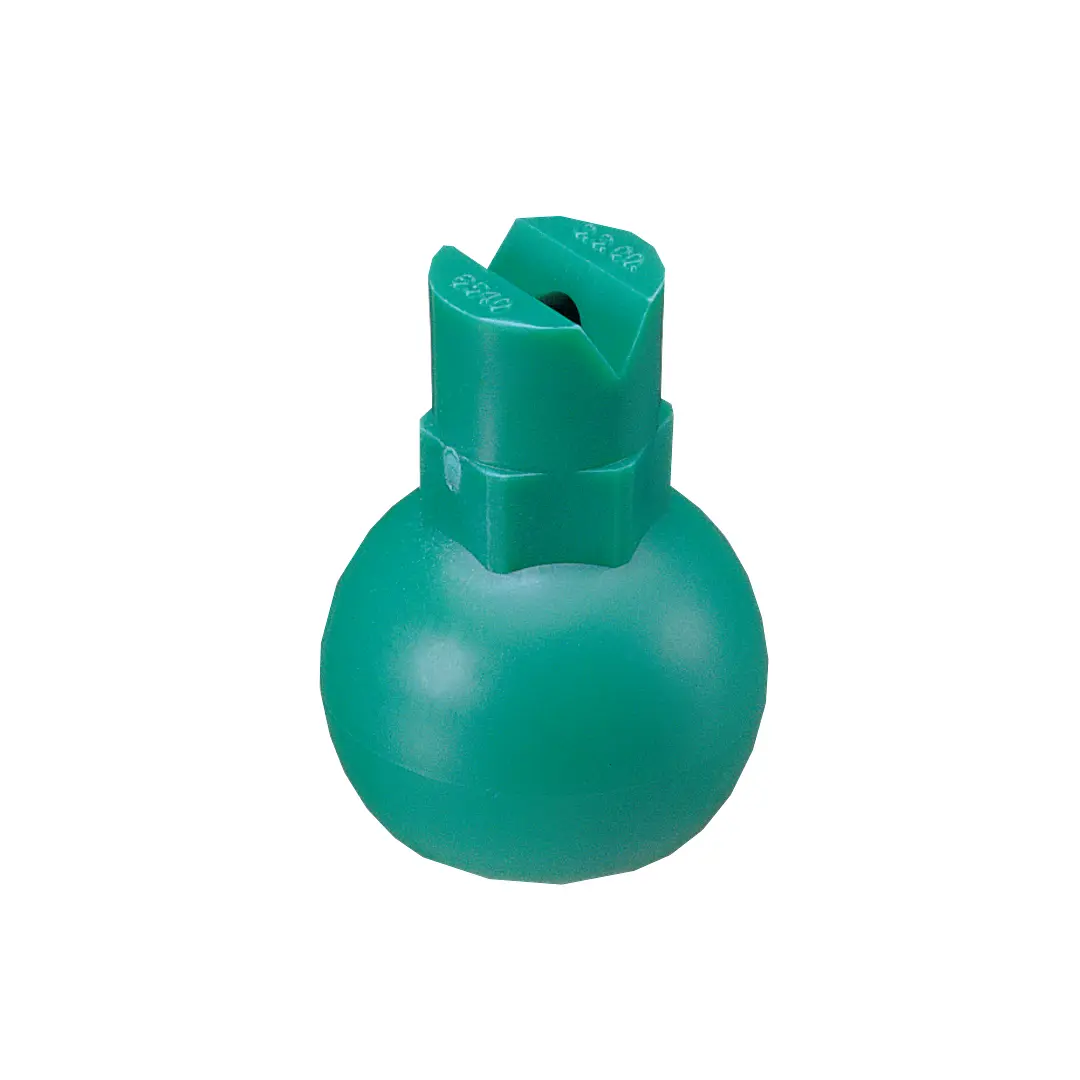

CT Series Flat Fan Nozzle, GREEN

For Use with Adjustable Ball Nozzle Assemblies

Chemically resistant, for rinse, soap or wax arches, de-icing spray bars or industrial applications. Designed for adjustable direction of nozzles for the most effective coverage. Bodies are available with 1/4", 3/8" or 1/2" MPT threads or with a clip-type clamp for 1" through 2" pipe.

Nozzles are available in two styles: Ball/Nozzle combinations (CA & CT numbers) or ball joints only with a threaded ports for use with existing 1/4" or 3/8" MPT nozzles.

For complete assemblies, order the body of choice (cap included) and the nozzle type and size required or the ball only if using your own tips. Threaded bodies are rated to 125 psi. Clip-eyelet bodies are rated to 60 psi. Both will handle temperatures to 180 Deg. F. Plastic parts are polypropylene for excellent chemical resistance.
† Specify Full Number from charts in link at top of page:
