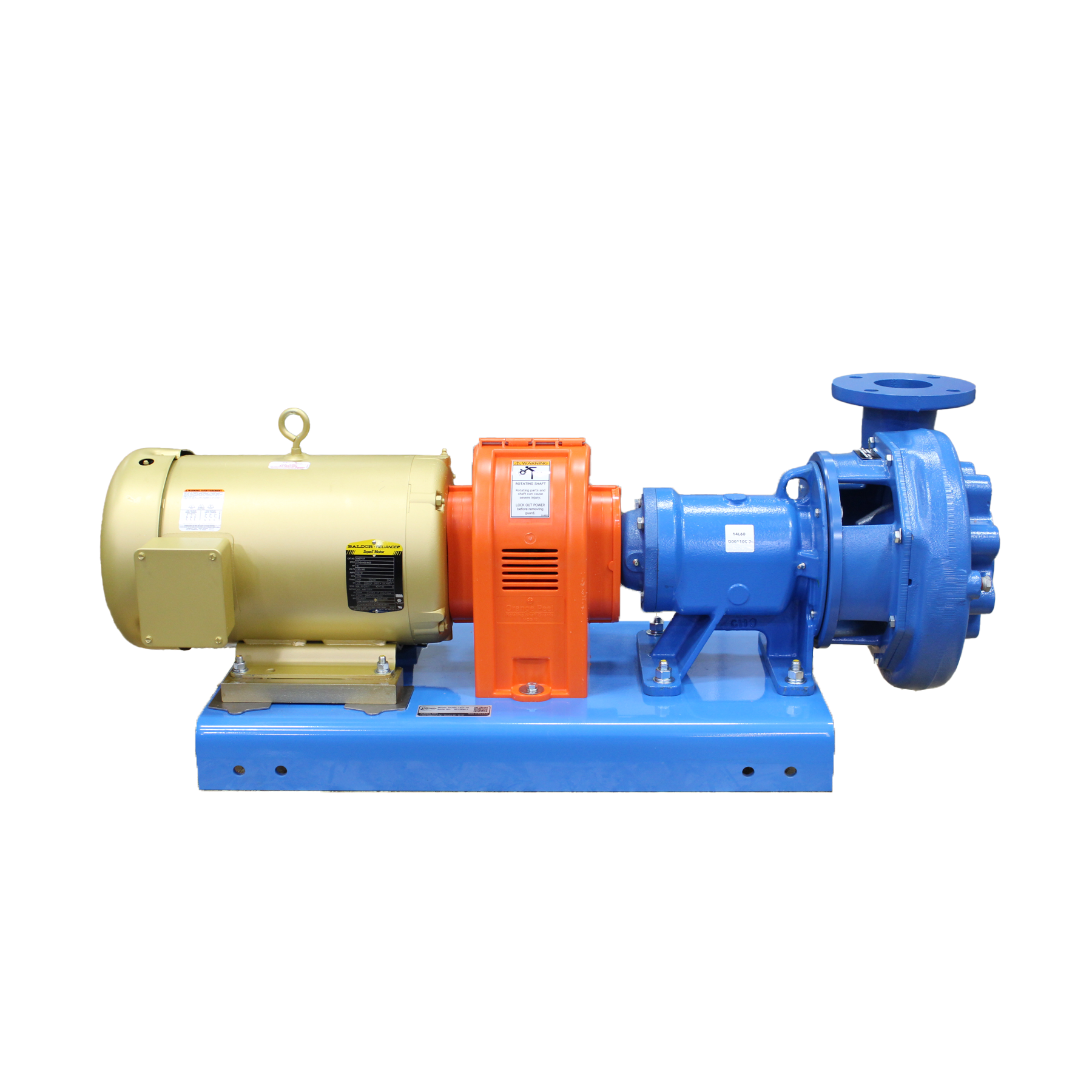

    Straight Centrifugal Pump / Motor Unit, Cast Iron, 4" x 3" Flanged Ports, 1.0 Max SG, 810 GPM MAX, 25 HP Motor - 3 PH

    Goulds Pump / Motor Units feature the frame mounted Goulds Pumps shown at left mounted with S-Flex coupling assemblies and 3-phase TEFC motors. All units are assembled and properly aligned prior to shipping. SAE mounts and close-coupled versions also available.

    These all iron centrifugal pumps can be used for transfer of a wide variety of Liquid Solutions. High capacity pumps in 4" x 3" or 6" x 4" sizes with Silicon Carbide/Viton® Mechanical Seals are an ideal choice for fertilizer and chemical transfer.
    * Use pumps with 1.4 S.G. for heavy or viscous products such as fertilizers, brines, etc.
    Manufacturer: Dultmeier Sales
    SKU: DUGL14E-25
    VIEW CATALOG PAGE E1135
    $11,155.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Products specifications
    Pump Type Centrifugal
    Body Material Cast Iron
    Inlet Size 4"
    Outlet Size 3"
    Inlet Connection Flange
    Outlet Connection Flange
    Max GPM 810
    Flow Rate 770 GPM @ 25 PSI
    Motor Max RPM 1750
    Self-Priming Yes
    Pump Mfg Goulds Pumps
    Max Specific Gravity 1
    Drive Electric Motor
    Drive Style Long Coupled
    Motor HP 25
    Phase 3

    Additional Information

    Standard Features Include:
    • Back Pull-Out Design to reduce maintenance down time.
    • Silicon Carbide/Viton® Mechanical Seals for added durability and corrosion resistance.
    • Replaceable Wear Components including 316SS stainless steel shaft sleeve, casing and hub wear rings.
    • Enclosed Impeller design with dynamic balancing.
    • 125# ANSI Flanges on suction and discharge for piping versatility.
    • 4 x 3 sizes will pass up to 3/8" solids, 6 x 4 sizes will pass up to 7/16" solids.
    • Shaft size is 1-5/8" on all models.
    • Grease lube bearings.
    • All pumps are rated to 1750 rpm for longer seal and bearing life and improved performance on longer suction piping.
    • All iron construction.
    • 212 Deg. F. maximum temperature.
