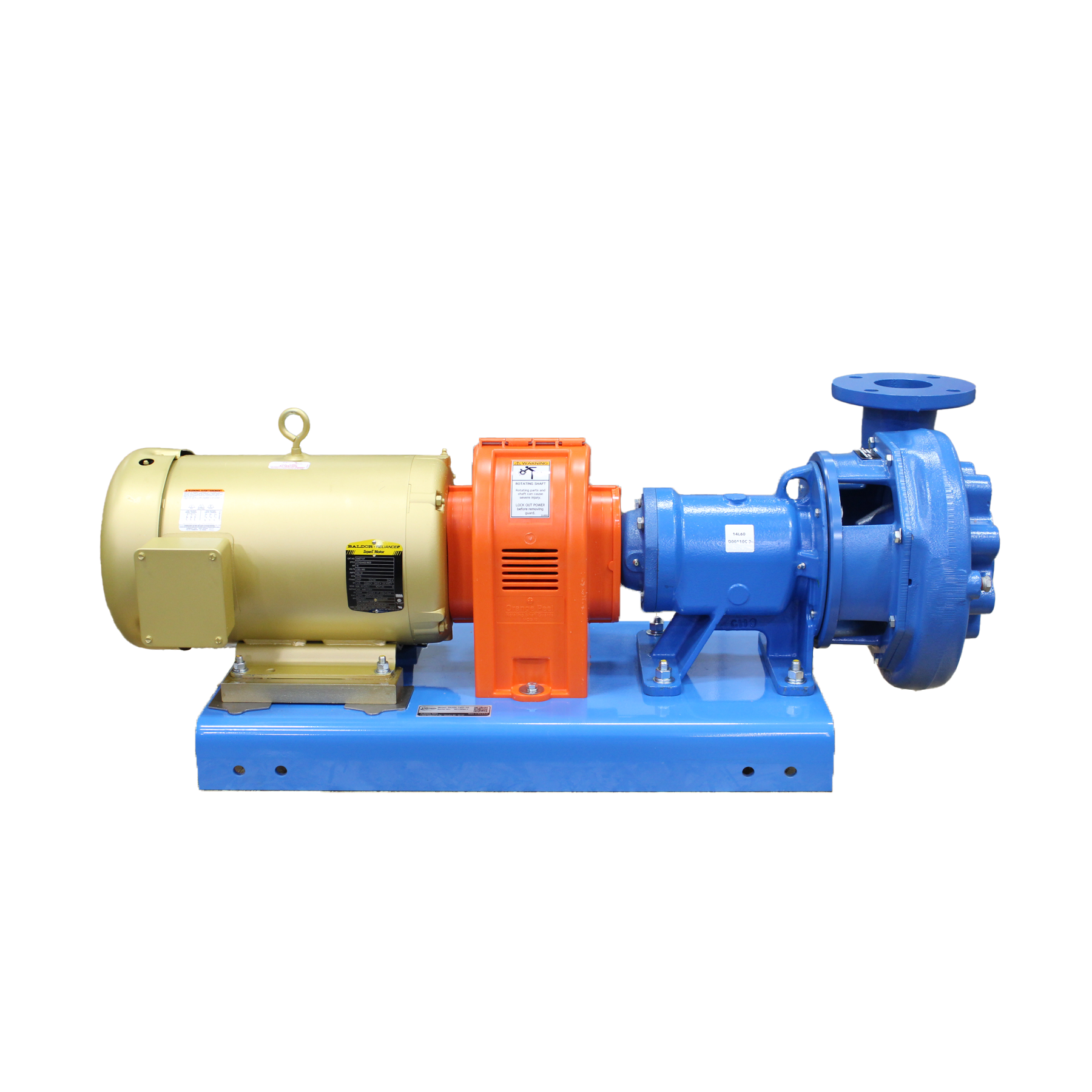

Picture of Straight Centrifugal Pump / Motor Unit, Cast Iron, 6" x 4" Flanged Ports, 1060 GPM MAX, 1.0 Max SG, 25 HP Motor - 3 PH

Dultmeier Sales
Straight Centrifugal Pump / Motor Unit, Cast Iron, 6" x 4" Flanged Ports, 1060 GPM MAX, 1.0 Max SG, 25 HP Motor - 3 PH

SKU: DUGL15J-25

Goulds Pump / Motor Units feature the frame mounted Goulds Pumps shown at left mounted with S-Flex coupling assemblies and 3-phase TEFC motors. All units are assembled and properly aligned prior to shipping. SAE mounts and close-coupled versions also available.

These all iron centrifugal pumps can be used for transfer of a wide variety of Liquid Solutions. High capacity pumps in 4" x 3" or 6" x 4" sizes with Silicon Carbide/Viton® Mechanical Seals are an ideal choice for fertilizer and chemical transfer.
* Use pumps with 1.4 S.G. for heavy or viscous products such as fertilizers, brines, etc.

$12,086.00 / EA

Qty:

i h

Specifications

Products specifications

Pump Type	Centrifugal
Body Material	Cast Iron
Inlet Size	6"
Outlet Size	4"
Inlet Connection	Flange
Outlet Connection	Flange
Max GPM	1060
Flow Rate	900 GPM @ 25 PSI
Motor Max RPM	1750
Self-Priming	Yes
Pump Mfg	Goulds Pumps
Max Specific Gravity	1
Drive	Electric Motor
Drive Style	Long Coupled
Motor HP	25
Phase	3

Additional Information

Standard Features Include:

Back Pull-Out Design to reduce maintenance down time.
Silicon Carbide/Viton® Mechanical Seals for added durability and corrosion resistance.
Replaceable Wear Components including 316SS stainless steel shaft sleeve, casing and hub wear rings.
Enclosed Impeller design with dynamic balancing.
125# ANSI Flanges on suction and discharge for piping versatility.
4 x 3 sizes will pass up to 3/8" solids, 6 x 4 sizes will pass up to 7/16" solids.
Shaft size is 1-5/8" on all models.
Grease lube bearings.
All pumps are rated to 1750 rpm for longer seal and bearing life and improved performance on longer suction piping.
All iron construction.
212 Deg. F. maximum temperature.
